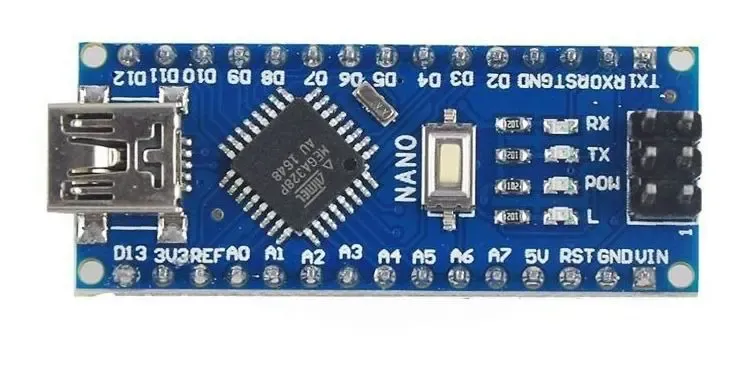

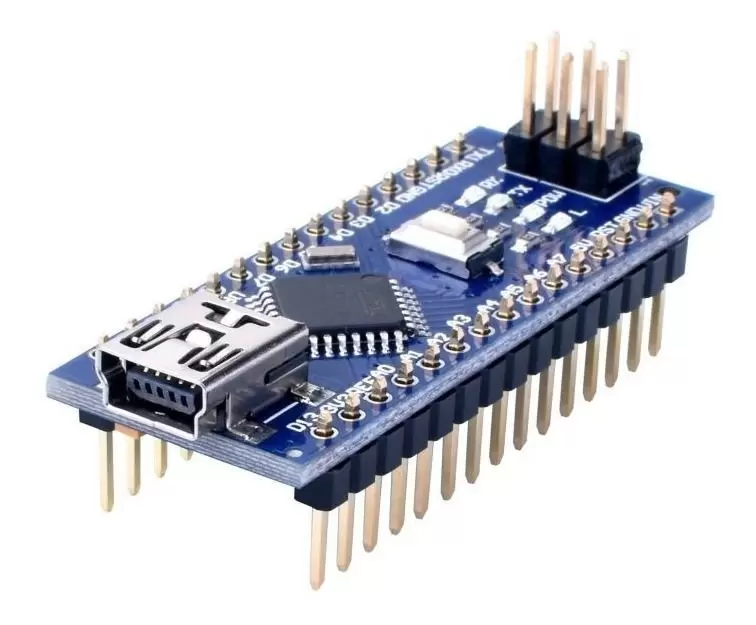

All the power of the ATmega328P in a miniature format.
The Arduino Nano V3 is the perfect solution for projects where space is critical. Despite its small size, it offers virtually the same capabilities as an UNO board, but with the advantage of being able to plug directly into a breadboard. It is the preferred board for developing wearables, small robots, and compact IoT devices.
Main Features:
Breadboard-Friendly Design: Its pin layout allows it to be connected directly onto a breadboard, facilitating clean and stable wiring without the need for long cables.
High-Performance Microcontroller: Based on the chip ATmega328P, ensuring full compatibility with most Arduino libraries and codes.
Integrated Connectivity: Includes a Mini-USB port for programming and power, simplifying its use in any development environment.
Pin Versatility: Despite its size, it has a wide range of digital and analog inputs and outputs to control sensors and actuators.
Technical Specifications:
Microcontroller: ATmega328P.
Architecture: 8-bit AVR.
Operating Voltage: 5V.
Input Voltage: 7V to 12V (via VIN pin).
Digital I/O Pins: 14 (with 6 PWM outputs).
Analog Inputs: 8 (2 more than the UNO version).
Flash Memory: 32 KB.
Clock Speed: 16 MHz.
Maximizing Your Prototyping with Microcircuits:
Thanks to its compact design, the Nano V3 is the ideal companion for our prototyping line:
Direct Mounting: Combine it with the 400-point Breadboard to create fully functional miniature devices.
Peripheral Connections: Use our Male-Female Jumper Wires to connect external sensors while the board remains fixed on the breadboard.
